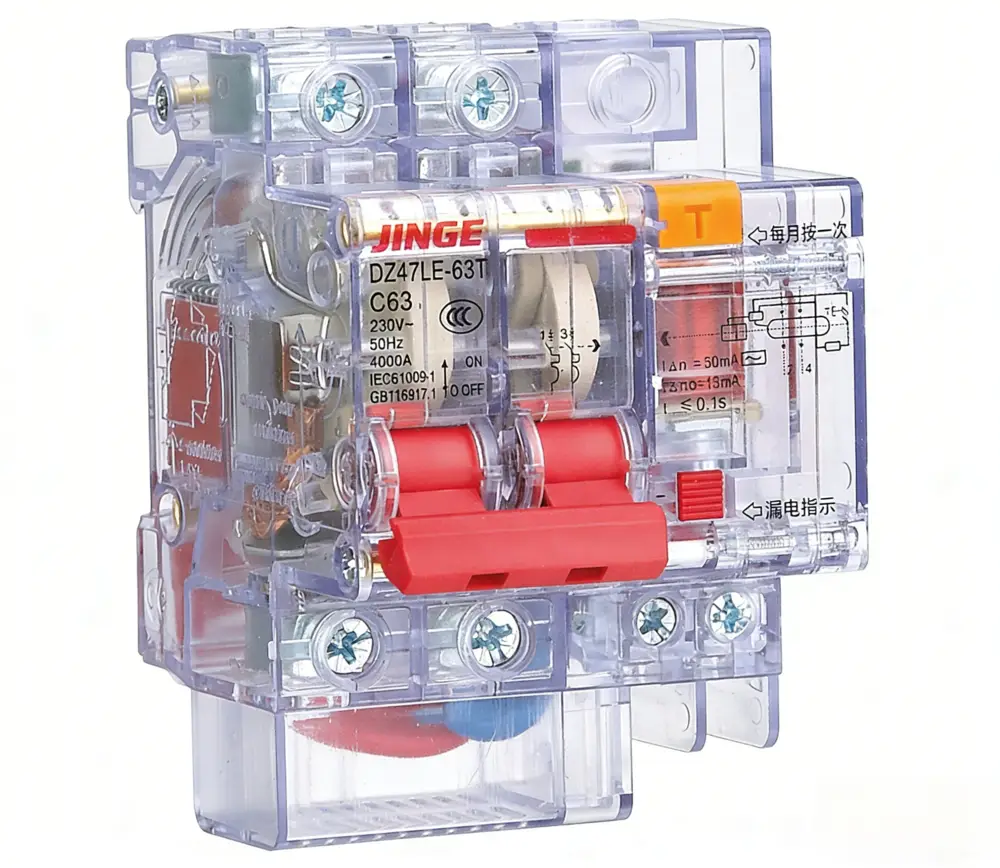

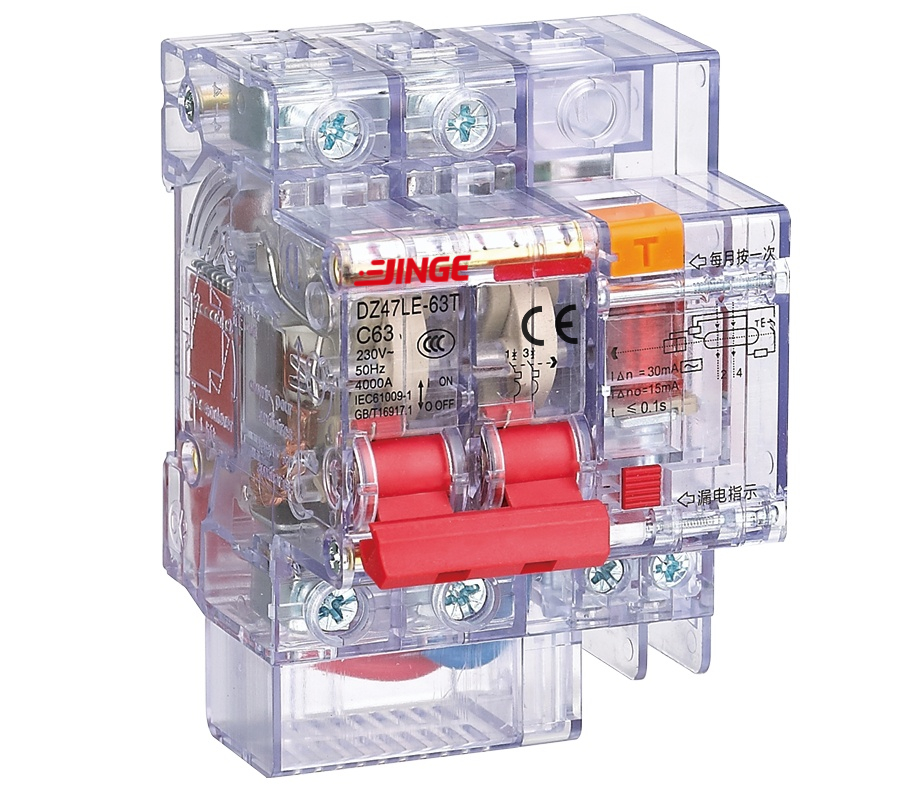

DZ47LE-63 4.5kA RCBO RCCB with Overcurrent Protection with transparent case
JINGE DZ47LE-63 RCBO (Residual Current Circuit Breaker with Overcurrent Protection) integrates earth leakage protection, overload protection and short-circuit protection in one unit. Designed in line with top electrical brand standards, it provides all-round safety for residential, commercial and industrial power distribution systems.
With ultra-fast tripping speed (≤0.1s) under electric shock or leakage fault, this RCBO effectively protects personal safety and prevents equipment damage. Compliant with IEC/EN61009-1 international standard, it is widely used in households, buildings, factories and distribution boxes where high-level safety protection is required.
Key Adventage
- All-in-one Protection: Integrates leakage protection, overload protection and short-circuit protection.
- Ultra-fast Tripping: Trips within ≤0.1s once leakage fault is detected, ensuring personal safety.
- Stable and Reliable: Mature electronic leakage detection mechanism, high anti-interference ability.
- Clear Fault Indication: Equipped with leakage indicator and contact position indicator for easy maintenance.
- Wide Application: Suitable for 50/60Hz global power systems, multiple sensitivity options available.
- Standard Installation: 35mm DIN rail mounting, easy wiring and fast installation.
- High Safety Structure: Flame-retardant shell, strong insulation, safe and durable.
Technical Specification Parameters
| Item | Specification |
|---|---|
| Standard | IEC/EN61009-1 |
| Protection Type | Leakage / Overload / Short Circuit / Over-voltage (Optional) |
| Tripping Type | Leakage: Electronic; Overload/Short: Thermo-magnetic |
| Leakage Type | AC / A / S |
| Poles | 1P, 2P, 3P, 3P+N, 4P |
| Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Rated Sensitivity Current | 10mA, 30mA, 100mA, 300mA |
| Tripping Time | ≤0.1s |
| Rated Voltage | 1P+N:230/240V; 3P+N:400/415V |
| Frequency | 50/60Hz |
| Breaking Capacity | 4.5kA (4500A) |
| Protection Degree | IP20 |
| Mounting | 35mm DIN Rail |
Application Scenarios
DZ47LE-63 RCBO is widely used in residential buildings, apartments, villas, commercial shops, office buildings, schools, hospitals, factories and construction sites. It provides essential safety protection for circuits where electric shock prevention and equipment safety are critical.
Diagram

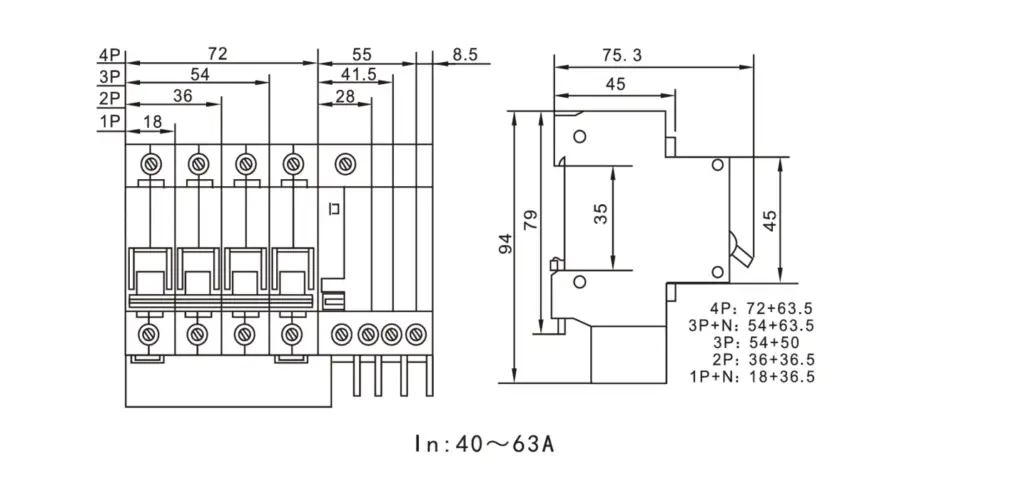

Install Dimension
