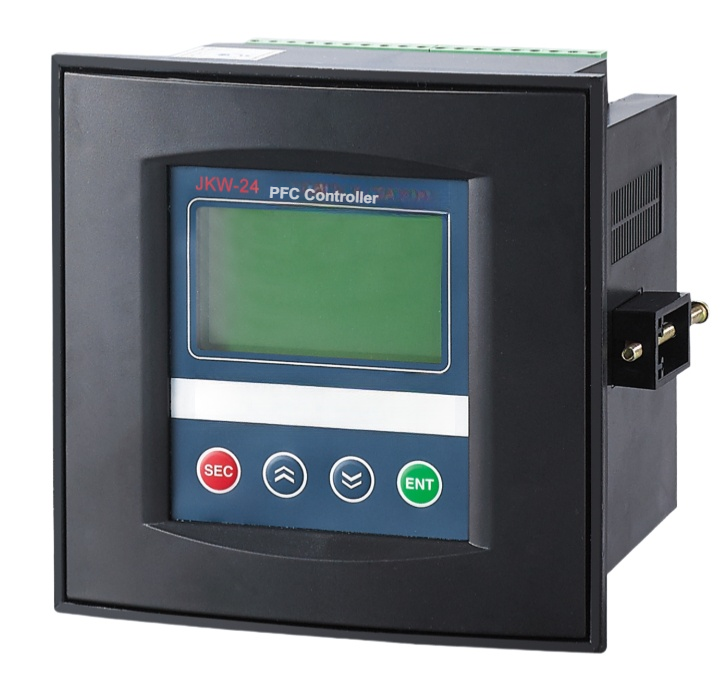

JKL / JKW/ JKGPJ Seris Power Factor Correction Controller (Reactive Power Compensation Controller)
JKL, JKW and JKGPJ series power factor correction (PFC) controllers are intelligent automatic control devices specially designed for low-voltage reactive power compensation systems. They can real-timely detect power factor, voltage and current of power grid, and automatically switch capacitor banks in groups to realize dynamic reactive power compensation.
JKL is for general workshops with light harmonic load; JKW is optimized for harsh working conditions with many frequency converters and strong harmonics; JKGPJ adopts independent split-phase control, specially for three-phase unbalanced load occasions.
With high anti-interference performance, high measurement accuracy and stable operation, this series is widely matched with capacitors, reactors and composite switches. All products comply with IEC – 61921 standards and hold CE certificates, perfectly applicable to 50/60Hz, 380/400V power grids in Vietnam, Europe and Southeast Asia.
Model Explanation
- JKL5C: Three-phase synchronous switching, for general factories & light harmonic loads
- JKW5C: Anti-harmonic three-phase synchronous switching, for battery workshops & data centers
- JKGPJ: Independent split-phase balance switching, for three-phase unbalanced power distribution systems
Core Features & Advantages
- High precision sampling & real-time monitoring for power factor, voltage and current.
- Three switching modes available to match different on-site working conditions.
- Strong anti-harmonic & anti-interference ability, stable for long-term operation.
- Over-voltage, under-voltage and over-current protection functions.
- Wide control voltage range, adaptable to complex grid fluctuation.
- Compact DIN rail mounting design, easy for cabinet installation.
- CE certified, fully meet overseas import requirements.
Normal Working Conditions
- Altitude: ≤ 2000 m above sea level.
- Ambient Temperature: -10℃ ~ +55℃.
- Relative Humidity: ≤ 90% (No condensation).
- Working Environment: No corrosive gas, flammable medium or severe vibration.
- Rated Frequency: 50 / 60 Hz dual universal.
- Installation: Standard DIN rail mounting inside distribution cabinet.
Technical Parameters
| Model | Rated Control Voltage | Max Control Loops | Switching Mode | Applicable Scenario |
|---|---|---|---|---|
| JKL5C | AC 220V / 400V | 12 Loops | Three-phase synchronized switching | General factory, light harmonic load |
| JKW5C | AC 220V / 400V | 12 Loops | Anti-harmonic synchronized switching | Battery plant, data center |
| JKGPJ | AC 220V / 400V | 12 Loops | Independent split-phase balance switching | Three-phase unbalanced load |
Overall Dimension & Installation
| Model | Overall Size (L×W×H, mm) | Single Gross Weight (kg) | Mounting Type |
|---|---|---|---|
| JKL5C / JKW5C / JKGPJ | 150 × 80 × 70 | 0.45 | DIN Rail |
Packing Specification
| Model | Outer Carton (L×W×H, mm) | Quantity Per Carton |
|---|---|---|
| All models | 160 × 90 × 80 | 1 Pcs |
Professional Electrical Performance
- Power Factor Measurement Range: 0.8 ~ 1.0
- Voltage Detection Range: AC 180V ~ 460V
- Switching Action Delay: Adjustable to avoid frequent switching
- Protection Function: Over-voltage / Under-voltage / Loss-of-phase protection
- Power Consumption: ≤ 2VA (Low power consumption)
- Service Life: More than 100,000 hours under rated working condition.
Application Scope
- Reactive power compensation cabinets for factory production lines;
- Harmonic filtering & power quality improvement systems;
- Distribution cabinets of battery factories and data centers;
- Three-phase unbalanced power distribution occasions;
- Widely used in Vietnam, Europe, Africa and other overseas markets.
Custom & After-sales Remark
- 12 groups of output loops, compatible with most mainstream composite switches.
- DIN rail installation, easy wiring and maintenance.
- Conventional models are in stock, delivery time: 3-5 working days.
- OEM & ODM (custom logo, nameplate) are supported.
