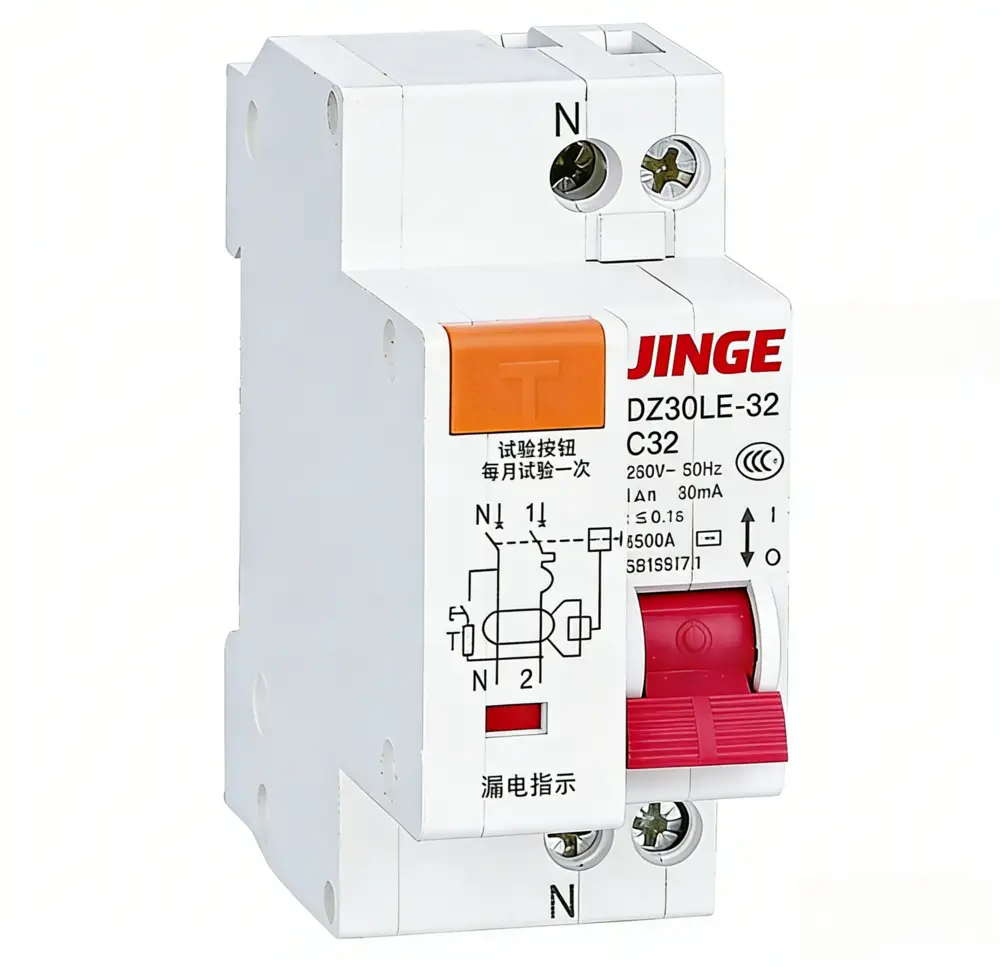

DZ30LE-32 4.5kA RCBO RCCB with Overcurrent Protection
JINGE DZ30LE-32 RCBO (Residual Current Circuit Breaker with Overcurrent Protection) is a compact, high-safety protection device designed for residential and light commercial lighting and power circuits. It integrates earth leakage protection, overload protection and short-circuit protection in one slim unit.
With ultra-fast tripping speed ≤0.1s under electric shock or leakage fault, this breaker effectively protects personal safety and prevents equipment damage. Compliant with IEC/EN61009-1 international standard, it is widely used in households, apartments, shops and distribution boxes with limited installation space.
Key Adventages
With ultra-fast tripping speed ≤0.1s under electric shock or leakage fault, this breaker effectively protects personal safety and prevents equipment damage. Compliant with IEC/EN61009-1 international standard, it is widely used in households, apartments, shops and distribution boxes with limited installation space.
Technical Specification Parameters
| Item | Specification |
|---|---|
| Standard | IEC/EN61009-1 |
| Protection Type | Leakage / Overload / Short Circuit / Over-voltage (Optional) |
| Tripping Type | Leakage: Electronic; Overload/Short: Thermo-magnetic |
| Leakage Type | AC Type |
| Poles | 2P (2 modules), N pole is breakable |
| Rated Current | 6A, 10A, 16A, 20A, 25A, 32A |
| Rated Sensitivity Current | 10mA, 30mA, 100mA, 300mA |
| Tripping Time | ≤0.1s |
| Rated Voltage | 230/240V~ |
| Frequency | 50/60Hz |
| Breaking Capacity | 4.5kA (4500A) |
| Protection Degree | IP20 |
| Mounting | 35mm DIN Rail |
| Wiring | Top & Bottom Connection |
Application Scenarios
JINGE DZ30LE-32 RCBO is specially designed for compact distribution boxes and widely used in residential apartments, villas, family kitchens, bathrooms, lighting circuits, small shops, offices and light industrial locations. Its slim structure and high safety performance make it the preferred choice for modern residential and commercial circuit protection.
Diagram

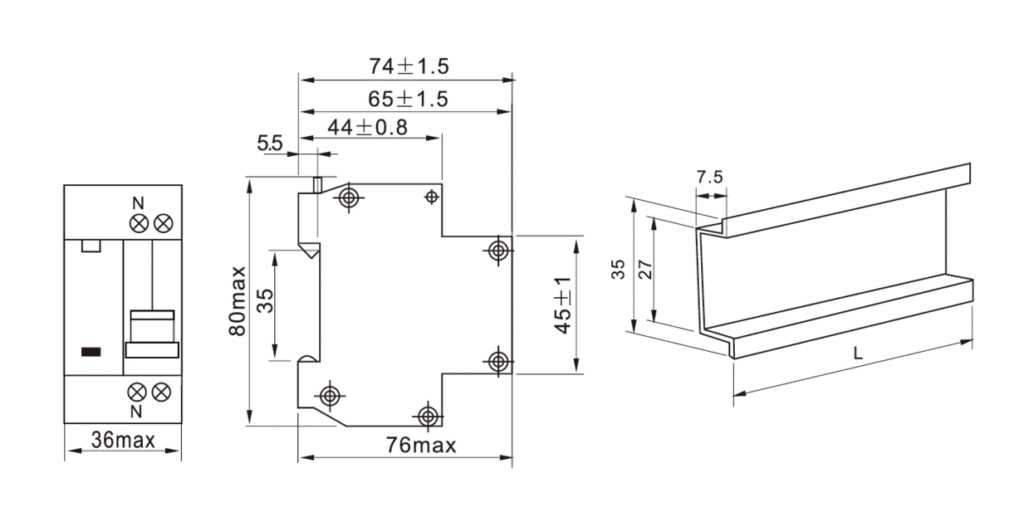

Install Dimension
