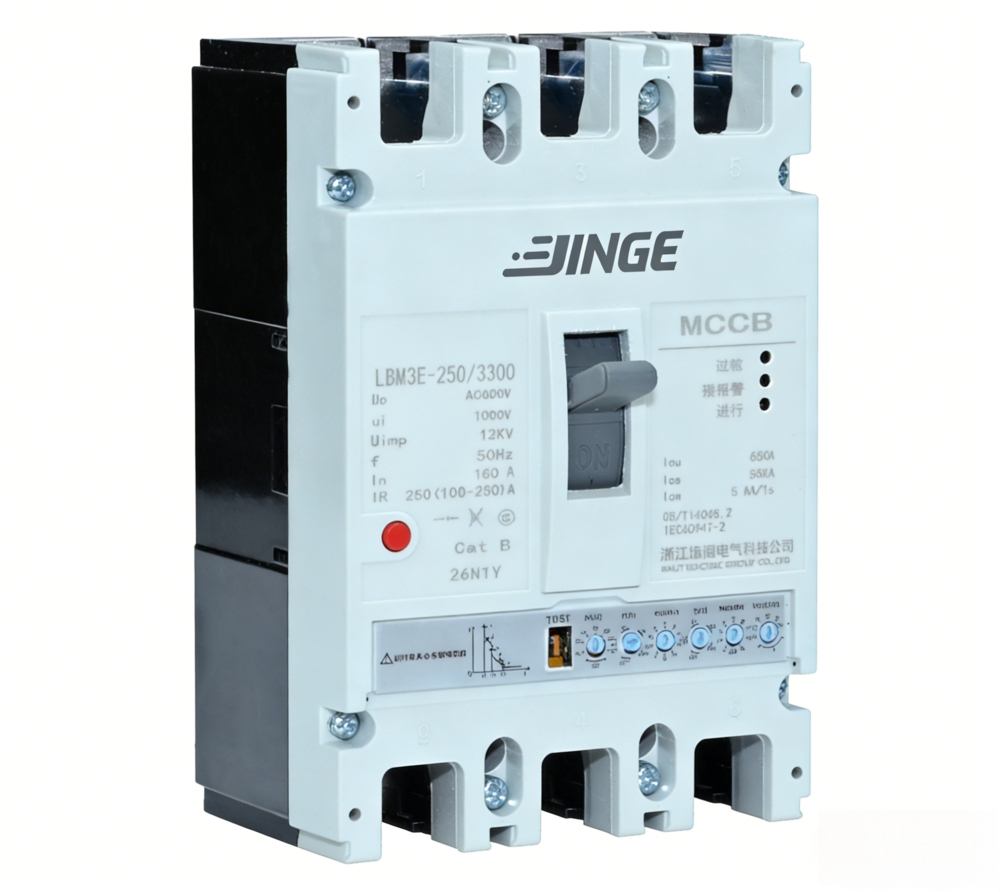

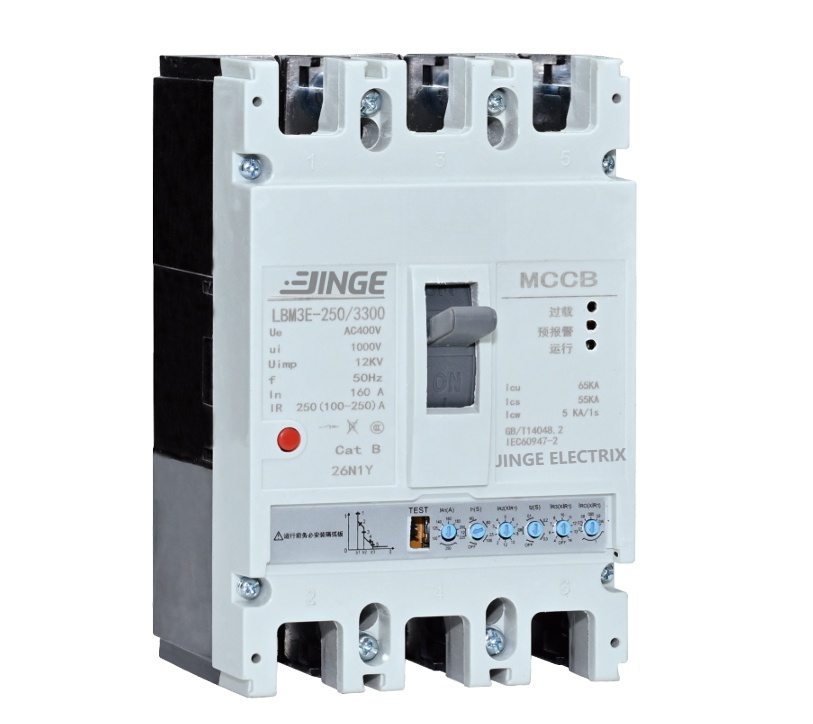

M3E Electronic Adjustable MCCB Molded-Case-Circuit-Breaker
M3E series is an upgraded electronic adjustable molded case circuit breaker, with high-precision electronic tripping unit. Protection parameters can be adjusted freely to meet different working conditions.
It is suitable for precision equipment, intelligent power distribution systems, data centers, automation production lines and other high-demand applications.
M3E Series Electronic Adjustable MCCB – Overview
| Model | Current | Tripping Type |
|---|---|---|
| M3E-100 | 100A | Electronic Adjustable |
| M3E-225 | 225A | Electronic Adjustable |
| M3E-400 | 400A | Electronic Adjustable |
| M3E-630 | 630A | Electronic Adjustable |
Main Technical Parameters
M3E Series Electronic Adjustable MCCB – Detailed Technical Parameters
| Item | M3E-100 | M3E-225 | M3E-400 | M3E-630 |
|---|---|---|---|---|
| Frame Current Inm (A) | 100 | 225 | 400 | 630 |
| Rated Current In (A) | 10,16,20,32,40,50,63,80,100 | 100,125,160,180,200,225 | 225,250,315,350,400 | 400,500,630 |
| Rated Insulation Voltage Ui (V) | 690 | 800 | 690 | 690 |
| Rated Operating Voltage Ue (V) | 400/690 | 230/400 | 400/690 | 400/690 |
| Rated Impulse Withstand Voltage Uimp (kV) | 6 | 8 | 6 | 6 |
| No. of Poles | 3/4 | 2/3/4 | 3/4 | 3/4 |
| Breaking Class | L/M | L/M/H | L/M | L/M |
| Ultimate Breaking Capacity Icu (kA) AC400V | 35/50 | 35/50/65 | 45/65 | 45/65 |
| Service Breaking Capacity Ics (kA) AC400V | 25/30 | 25/30/50 | 22.5/32.5 | 22.5/32.5 |
| Adjustable Protection Parameters | Ir/Isd/Ii | Ir/Isd/Ii | Ir/Isd/Ii | Ir/Isd/Ii |
| Arc Flash Distance (mm) | ≤50 | ≤50 | ≤100 | ≤100 |
| Operating Cycles / Hour | 120 | 120 | 60 | 60 |
| Mechanical Life With Load | 3000 | 3000 | 1500 | 1500 |
| Mechanical Life No Load | 7000 | 7000 | 6500 | 6500 |
| Tripping Type | Electronic Adjustable | Electronic Adjustable | Electronic Adjustable | Electronic Adjustable |
| Protection Class | IP30 | IP30 | IP30 | IP30 |
| Standards | GB14048.2, IEC60947-2 | GB14048.2, IEC60947-2 | GB14048.2, IEC60947-2 | GB14048.2, IEC60947-2 |
M3E Series – Core Features
- High-precision electronic tripping unit
- Adjustable protection parameters (Ir, Isd, li)
- High accuracy and stability
- Strong anti-interference ability
- Suitable for precision equipment protection
- Long service life and low failure rate
- Compatible with intelligent power systems
M3E Series – Typical Applications
Data Center Power Systems
Intelligent Power Distribution
Precision Industrial Equipment
Automated Production Lines
High-end Medical Equipment
Communication Base Stations
