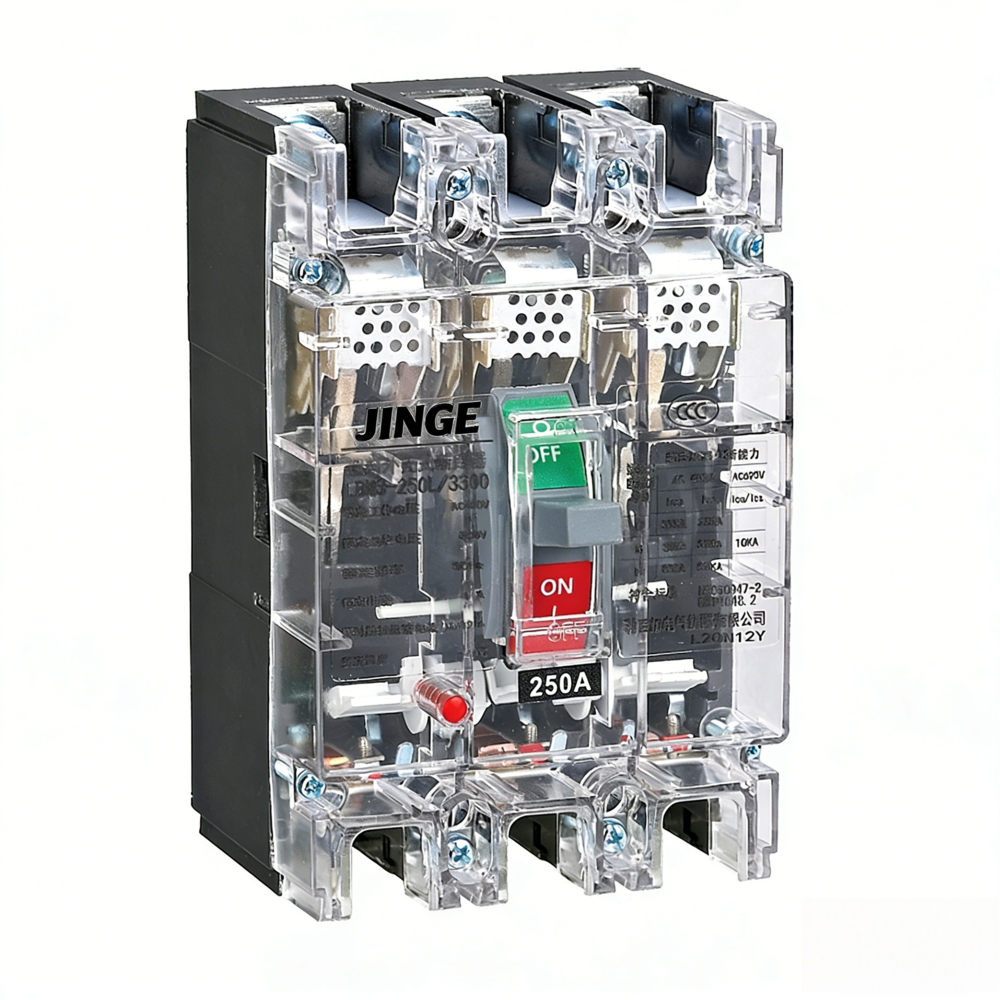

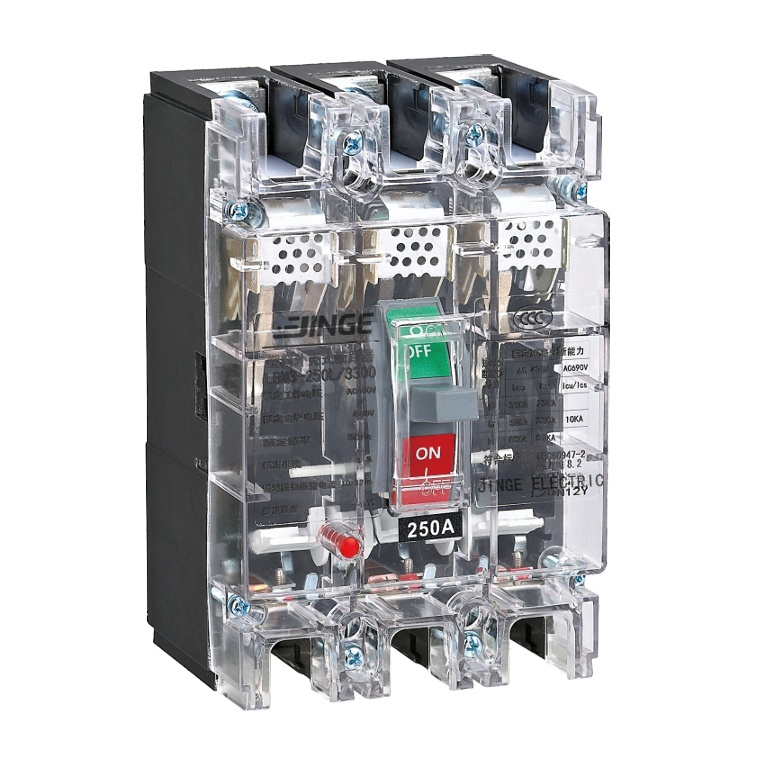

CM3 MCCB Molded-Case-Circuit-Breaker 63A-800A with transparent case
JINGE CM3 (M3) series transparent molded case circuit breaker is a new-generation high-performance industrial MCCB designed for global power distribution and motor protection. Compliant with IEC 60947-2 and GB 14048.2 standards, it covers rated current from 63A up to 800A and operates safely at AC 400V power systems.
With a compact structure, high breaking capacity, stable thermo-magnetic tripping and durable mechanical life, CM3 provides full protection against overload, short circuit and under-voltage faults. The transparent housing enables intuitive internal status inspection, fast troubleshooting and higher on-site safety, making it an ideal choice for modern industrial control, construction, data centers and infrastructure projects.
CM3 (M3) Series Molded Case Circuit Breaker – Overview
| Model | Frame Current | Voltage | Application |
|---|---|---|---|
| CM3-63 | 63A | AC 400V | Light distribution, small equipment |
| CM3-100 | 100A | AC 400V | Workshop, small building |
| CM3-225 | 225A | AC 400V | Commercial power, small industry |
| CM3-400 | 400A | AC 400V | Industrial distribution |
| CM3-630 | 630A | AC 400V | Heavy equipment, main line |
| CM3-800 | 800A | AC 400V | Large power distribution |
Key Adventages
- Transparent housing for visual inspection: Directly observe internal contact status and tripping condition for faster maintenance and higher safety.
- New-generation high-performance structure: Compact, robust and reliable mechanism designed for long-term heavy-duty operation.
- Ultra-high breaking capacity: Up to 65kA breaking capacity to handle strong short-circuit shocks and protect key equipment.
- Accurate thermo-magnetic tripping: Stable and precise protection, no misoperation or refusal under complex working conditions.
- Wide current coverage: Frame sizes from 63A to 800A, fully satisfying main incomers, feeders and heavy-load equipment.
- Flame-retardant & impact-resistant shell: High-grade industrial material ensures safety, anti-aging and long service life.
- Flexible installation: Supports fixed and plug-in types, compatible with 3P / 4P for global distribution systems.
- Short arc flash distance: Improves operator safety and reduces cabinet space requirements.
Technical Specifiations
CM3 (M3) Series MCCB – Detailed Technical Parameters
| Item | CM3-63 | CM3-100 | CM3-225 | CM3-400 | CM3-630 | CM3-800 |
|---|---|---|---|---|---|---|
| Frame Current Inm (A) | 63 | 100 | 225 | 400 | 630 | 800 |
| Rated Current In (A) | (6),10,16,20,25,32,40,50,63 | 10,16,20,32,40,50,63,80,100 | 100,125,160,180,200,225 | 225,250,315,350,400 | 400,500,630 | 630,700,800 |
| Rated Insulation Voltage Ui (V) | 500 | 690 | 800 | 690 | 690 | 690 |
| Rated Operating Voltage Ue (V) | 400 | 400 | 230/400 | 400 | 400 | 400 |
| Rated Impulse Withstand Voltage Uimp (kV) | 6 | 6 | 8 | 6 | 6 | 6 |
| No. of Poles | 3/4 | 3/4 | 2/3/4 | 3/4 | 3/4 | 3/4 |
| Breaking Class | L/M | L/M | L/M/H | L/M | L/M | L/M |
| Ultimate Breaking Capacity Icu (kA) AC400V | 10/15/35 | 35/50 | 35/50/65 | 45/65 | 45/65 | 50/65 |
| Service Breaking Capacity Ics (kA) AC400V | 5/10/25 | 25/30 | 25/30/50 | 22.5/32.5 | 22.5/32.5 | 25/32.5 |
| Arc Flash Distance (mm) | ≤50 | ≤50 | ≤50 | ≤100 | ≤100 | ≤100 |
| Operating Cycles / Hour | 120 | 120 | 120 | 60 | 60 | 20 |
| Mechanical Life With Load | 4000 | 3000 | 3000 | 1500 | 1500 | 1000 |
| Mechanical Life No Load | 6000 | 7000 | 7000 | 6500 | 6500 | 4000 |
| Tripping Type | Thermal-magnetic | Thermal-magnetic | Thermal-magnetic | Thermal-magnetic | Thermal-magnetic | Thermal-magnetic |
| Protection Class | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Standards | GB14048.2, IEC60947-2 | GB14048.2, IEC60947-2 | GB14048.2, IEC60947-2 | GB14048.2, IEC60947-2 | GB14048.2, IEC60947-2 | GB14048.2, IEC60947-2 |
CM3 (M3) Series – Core Features
- High breaking capacity up to 70kA
- Compact and reliable structure
- Thermal-magnetic tripping for accurate protection
- 3P and 4P for wide application
- Fixed and plug-in installation available
- Flame retardant shell, high safety
- Long mechanical and electrical life
CM3 (M3) Series – Typical Applications
Industrial Power Distribution
Commercial Building Power
Motor & Pump Protection
Construction Engineering
Data Center Auxiliary Power
Infrastructure Projects
JINGE CM3 transparent MCCB is widely used in industrial power distribution, factory production lines, motor control centers, pump and compressor protection, commercial building power supply, construction engineering, data center auxiliary power systems and infrastructure projects.
With high reliability, easy maintenance and modern transparent design, CM3 is particularly suitable for high-standard projects requiring frequent inspection, stable performance and long service life. It is the preferred new-generation MCCB for global electrical distributors, engineering contractors and system integrators.We'd like to work with you !
