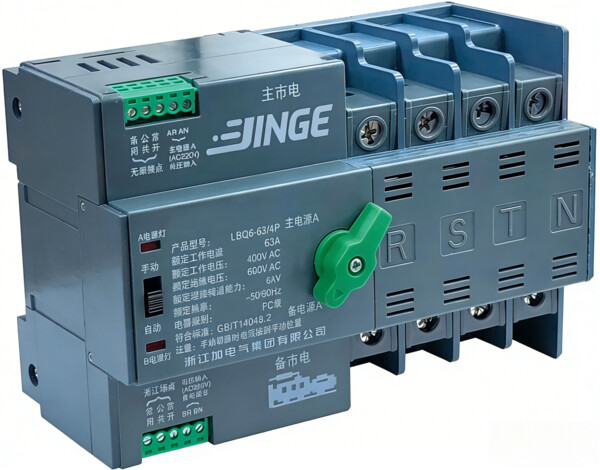

Q6 Molded Case Intelligent CB-Class Automatic Transfer Switch (ATS) High Reliability 100A-1250A
Q6 series is a compact molded case intelligent CB-class automatic transfer switch (ATSE), designed for AC 50/60Hz, rated voltage up to 400V low-voltage power systems. It realizes automatic or manual switching between normal mains power and backup power (generator/dual mains) to ensure uninterrupted power supply for critical loads.
Adopting an integrated molded case structure with built-in circuit breaker, Q6 integrates overcurrent, short-circuit protection and automatic transfer function in one unit. It features reliable mechanical & electrical interlock, compact size, easy installation, and intelligent control logic, widely used in residential, commercial, small industrial and emergency power supply scenarios.
Model Explanation
Q6 – □□ / □P
- Q6: Moulded case intelligent CB-class ATS series
- □□: Rated current (100A,225A,400A, 630A,800A,1250A)
- □P: Number of poles (2P, 3P, 4P, standard 4P as shown)
Key Features
- Compact integrated moulded case structure, space-saving, DIN rail mountable
- CB-class design with built-in circuit breaker, complete overcurrent & short-circuit protection
- Intelligent control module with status indicator lights (A/B power, manual/auto)
- Mechanical & electrical dual interlock, 100% prevents dual power parallel connection
- Manual operating handle with clear position indication, emergency manual operation available
- Passive auxiliary contact terminals (AR/AN/BR/BN) for external status monitoring
- Adjustable transfer delay time, stable and reliable switching
- Compliant with IEC 60947-6-1 & GB/T 14048.2 / GB/T 14048.11
Normal Operating Conditions
- Ambient temperature: -25℃ ~ +40℃
- Altitude: ≤ 2000m
- Relative humidity: ≤ 95% (non-condensing)
- Indoor installation, no corrosive gas, flammable dust or strong vibration
Technical Parameters
| No. | Item | Unit | Value |
|---|---|---|---|
| 1 | Rated Working Voltage (Ue) | V AC | 400 |
| 2 | Rated Insulation Voltage (Ui) | V AC | 690 |
| 3 | Rated Frequency | Hz | 50/60 |
| 4 | Rated Current (In) | A | 100A,225A,400A, 630A,800A,1250A |
| 5 | Rated Short-circuit Withstand Capacity | kV | 8 |
| 6 | Electrical Category | — | PC-Class / CB-Class (dual standard) |
| 7 | Transfer Time | s | ≤ 0.5 (adjustable) |
| 8 | Control Voltage | V AC | 220 |
| 9 | Mechanical Life | times | ≥ 10000 |
| 10 | Operation Mode | — | Auto / Manual |
| 11 | Protection Degree | IP | IP20 |
| 12 | Standards | — | IEC 60947-6-1, GB/T 14048.2, GB/T 14048.11 |
Typical Applications
Q6 compact moulded case ATS is ideal for small current, compact installation scenarios:
- Residential distribution boxes, home backup power systems
- Small commercial shops, offices, lighting systems
- Communication base stations, small equipment rooms, security systems
- Fire fighting, emergency lighting, uninterrupted power supply
- Small generator set supporting, dual mains automatic switching
