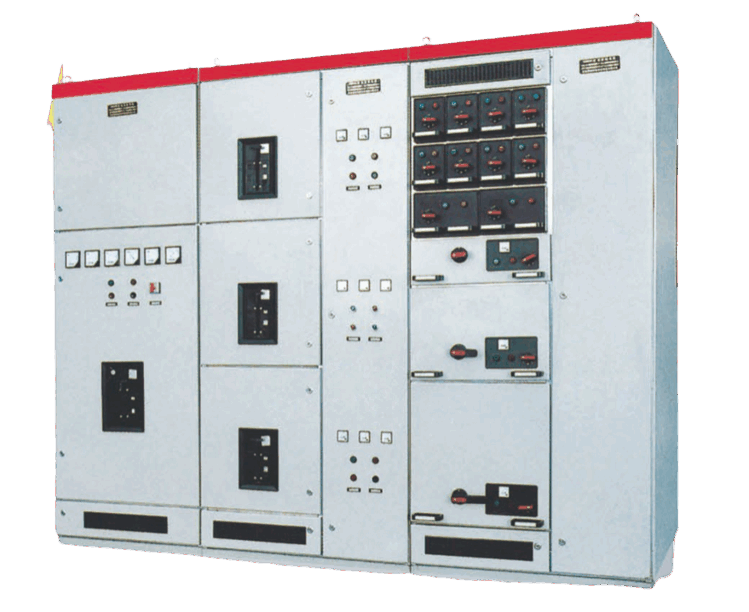

MNS Low voltage Withdrawable Switchgear

MNS Low voltage Withdrawable Switchgear - Modular Design  High Safety Flexible Configuration

Product Overview

The MNS series low voltage withdrawable switchgear is a new generation of modular power distribution equipment, introduced from ABB’s advanced technology and improved to adapt to domestic national conditions. It adopts a fully assembled structure with a 25mm modulus C-profile as the basic component, ensuring high flexibility, safety, and reliability.

Compliant with GB 7251.1-2005 and IEC 60439 standards, it is widely used in power plants, industrial enterprises, commercial buildings, data centers, and infrastructure projects for power distribution, motor control, and reactive power compensation.

Inquiry Now

Model Meaning

M N S – □ – □

  • M: Modular / Modularization
  • N: New Type
  • S: System
  • □: Main Circuit Scheme Number
  • □: Auxiliary Circuit Scheme Number

Structural Features

The cabinet is assembled by C-type connecting parts with 25mm modulus to form various frame structures and drawer units. In the MCC cabinet, high-strength flame-retardant engineering plastic components are used to make the safety more reliable.

  • Modular Framework: C-profile with 25mm modulus, convenient for assembly and expansion without special tools.
  • Safe Components: High-strength flame-retardant engineering plastics for internal components, improving safety.
  • Anti-Corrosion Treatment: Cold-rolled steel plate with pickling and passivation treatment, or aluminum-zinc plated steel plate available.
  • Flexible Combination: Various drawer types can be assembled in a single cabinet or mixed assembly.

Drawer Types & Capacity

Drawer Type Max. Units
8E/4 36
8E/2 18
8E 9
16E 4+8E
24E 3

Main Technical Parameters

Item Specification Standard
Overvoltage Category IV, III GB 7251.1-2005
IEC 60439
Pollution Grade 3
Rated Operating Voltage (Ue) AC 400/660V
Rated Insulation Voltage (Ui) AC 660/1000V
Rated Frequency 50 (60) Hz
Rated Current ≤ 5000A
Horizontal Busbar – Short-Time Withstand Current 50, 65, 80 kA (1s RMS)
Horizontal Busbar – Peak Withstand Current 105, 140, 176 kA (Max 0.1s)
Vertical Busbar – Rated Current ≤ 1000A
Vertical Busbar – Short-Time Withstand Current 50 kA
Vertical Busbar – Peak Withstand Current 105 kA
Protection Degree IP30, IP40 (Special note)

Normal Operating Environment

  • Ambient temperature: Not higher than +40°C, not lower than -5°C, and average temperature not higher than +35°C within 24h.
  • Relative humidity: Not more than 50% at +40°C; up to 90% at lower temperatures (allowing condensation).
  • Altitude: Not more than 2000m.
  • Installation place: No severe vibration or impact, no corrosive gas or vapor.

Cabinet Dimensions (mm)

1. Feeder / Busbar Cabinet

Type Height Width Depth
Main Busbar Transfer 2200 400 / 600 / 800 / 1000 800 / 1000
Feeder / Busbar 2200 600 / 800 / 1000 800 / 1000

2. Power Center (PC) Cabinet

Configuration Height Width Depth
2 Circuit Breakers 2200 800 / 1000 800 / 1000
3 Circuit Breakers 2200 800 / 1000 800 / 1000

3. Motor Control Center (MCC) & Capacitor Cabinet

Type Height Width Depth
MCC Cabinet 2200 600 / 800 / 1000 1000 / 800
Capacitor Compensation Cabinet 2200 600 / 800 / 1000 800 / 1000 / 600

Application Scope

MNS series switchgear is suitable for power distribution and motor control in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings, shopping malls, hospitals, data centers and various industrial & civil construction fields. It can meet the power supply requirements of different working conditions.
